Aurora Tools

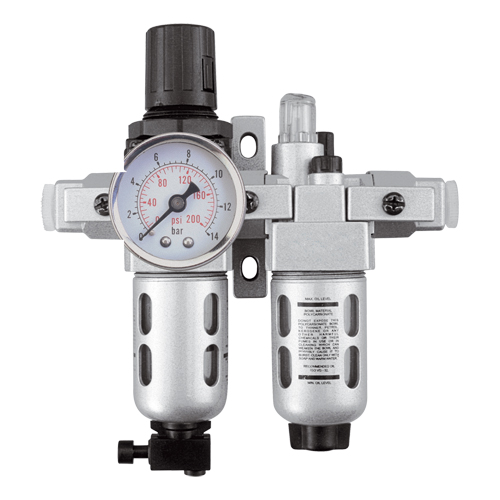

Modular Filter/Regulator & Lubricator (Gauge Included), 1/4" NPT

Model: TYY178

  • Modular Filter/Regulator & Lubricator (Gauge Included), 1/4" NPT NRZ Safety Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$130.00 / Each

In Stock

Connection Size:

1/4" NPT1/2" NPT3/8" NPT

Manufacturer's Warranty

  • 1 Year Limited

Connection Size

1/4" NPT

Max. Air Flow

18 SCFM @ 105 PSI

Operating Pressure

7-145 PSI

Bowl Material

Polycarbonate

Bowl Capacity

0.68 fl. oz.

Filter Bowl Capacity

0.30 oz.

Lubricator Bowl Capacity

0.68 oz.

Series

FRL100

Country Of Origin

India

  • Space-saving, two-piece combination is a popular air preparation unit
  • Attached in series using spacers and piping adapters, which make the two components easily removable and mountable without disturbing the pipe line
  • Come complete with a wall mounting bracket
  • Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
  • Filter used to separate dust, dirt, moisture and other contaminants from compressed air
  • Filter features press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
  • Lubricator used to feed lubricants to pneumatic equipment and maintain a constant oil-to-air density over a wide range of flow
  • Fog/Micro Mist type lubricator, up to 50' pipe runs
