King Canada

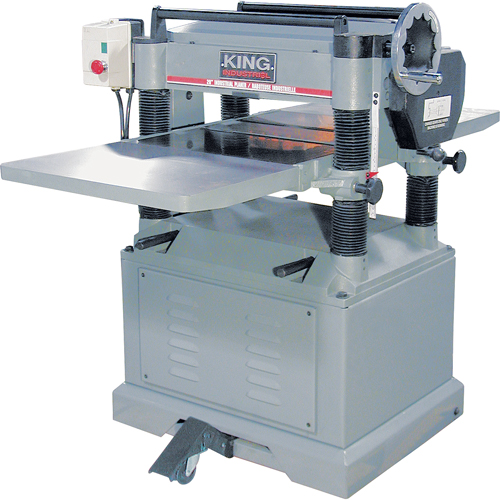

Planer, 56-1/2" W x 40" L x 42" H, 5000 RPM No Load Speed

Model: TBW141

Mfr. No.: KC-520C

  • Planer, 56-1/2" W x 40" L x 42" H, 5000 RPM No Load Speed NRZ Safety Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$4,579.00 / Each

Ships May 2026

Shipping times are based on information available at the time of order and are subject to change.

Overall Width

56-1/2"

Overall Length

40"

Overall Height

42"

No Load Speed

5000 RPM

Feed Rate

2 (16 - 20) FPM

Max. Planing Width

20"

Max. Planing Thickness

8"

Max. Depth Of Cut

3/32"

Cutter Head Diameter

3.15"

No. Of Knives

4

Work Table Surface

56-1/2" x 20"

Motor

19 Amp

Voltage

220V, 1 Phase, 60 Hz

  • Table raises and lowers on four precision ground columns
  • Solid cast iron extension table provides support for longer material
  • Mobile base system built into cabinet
  • Anti-kickback fingers in front of the infeed roller prevent wood kickback
  • Includes: Magnetic safety switch, planing knives, knife setting gauge and 4'' dust collector outlet ; ; Model No. TBW141 ; Mfg. No. KC-520C; Max. planing width: 20" ; Max. planing thickness: 8" ; Max. depth of cut: 3/32" ; Total surface of work table: 56 1/2" x 20"; Cutter head speed: 5000 RPM; Cutter head diameter: 3.15" ; Number of knives: 4; Feed rate: 2 (16 - 20) FPM ; No. cuts per inch: 104-83 ; Motor: 18 A, single phase, 60 Hz ; Voltage: 220 V; Dimensions: 40" L x 56 1/2" W x 42" H; Weight: 880 lbs.
