FLIR

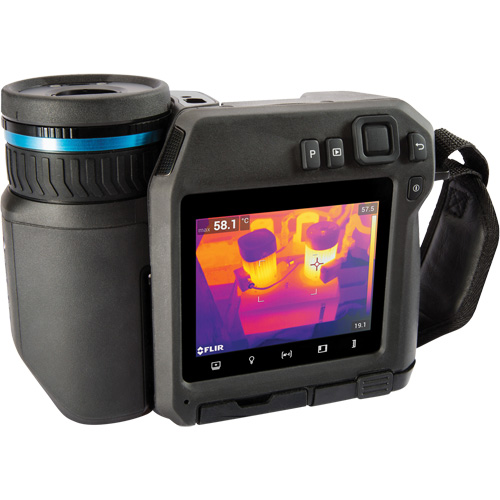

T540 Professional Thermal Camera with 14° Lens, 464 x 348 pixels, -20° - 1500°C (-4° - 2732°F), 50 mK

Model: ID236

Mfr. No.: 79301-0201

  • T540 Professional Thermal Camera with 14° Lens, 464 x 348 pixels, -20° - 1500°C (-4° - 2732°F), 50 mK NRZ Safety Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$22,190.00 / Each

Ships in 2-3 weeks

Shipping times are based on information available at the time of order and are subject to change.

Display Size

4"

Display Type

Built-in

Resolution

464 x 348 pixels

Thermal Sensitivity

50 mK

Temperature Range

-20° - 1500°C (-4° - 2732°F)

Accuracy

±2°C (±3.6°F) or ±2% of the Reading

Field Of View (FOV)

14° × 10°

Colour Palettes

Iron, Grey, Rainbow, Arctic, Lava, Rainbow HC

Digital Camera FOV

53° × 41°

Focal Length

29 mm (1.41 in.)

Image Frequency

30 Hz

Minimum Focus Distance

1 m (3.28 ft.)

Spatial Resolution (IFOV)

0.52 mrad/pixel

Spectral Range

7.5-14 µm

Country Of Origin

Sweden

  • This portable, ergonomic thermal camera offers advanced features like 1-Touch Level/Span and continuous laser-assisted autofocus, making it the perfect non-contact diagnostic tool for condition monitoring and research applications
  • Streamline electrical/mechanical surveys, troubleshooting, and repairs with Inspection Route mode, which runs pre-planned routes created in FLIR Thermal Studio Pro so users can record temperature data and imagery in a logical sequence
  • The built-in Macro Mode allows R&D users to quickly switch from wide angle to close-up analysis without changing the lens
  • Pair the T540 with a FLIR FlexView® dual field-of-view lens for the convenience to instantly switch from wide-area to telephoto scanning
  • When coupled with Research Studio software, the T540 helps engineers assess unexpected hot spots and find potential design flaws
  • Laser-assisted autofocus guarantees you'll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions
  • The T540's optical block rotates 180°, so you can image targets at any anglecomfortablyall day long
  • The capacitive touchscreen with intuitive menu is easy to navigate, plus you can customize with two programmable buttons
