FLIR

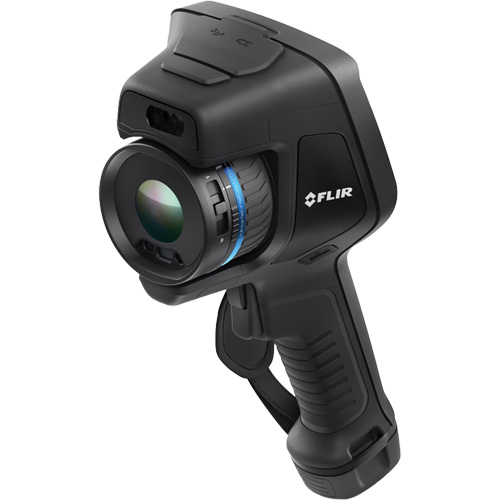

E76 Advanced Thermal Imaging Camera with 24° Lens, 320 x 240 pixels, -20° - 650°C (-4° - 1202°F), 30 mK

Model: ID158

Mfr. No.: 78518-1101

  • E76 Advanced Thermal Imaging Camera with 24° Lens, 320 x 240 pixels, -20° - 650°C (-4° - 1202°F), 30 mK NRZ Safety Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$13,749.00 / Each

Ships in 3-4 weeks

Shipping times are based on information available at the time of order and are subject to change.

Display Type

Built-in

Resolution

320 x 240 pixels

Thermal Sensitivity

30 mK

Temperature Range

-20° - 650°C (-4° - 1202°F)

Accuracy

±3.6°F (±2°C) or ±2% of the Reading

Focus Modes

Continuous Laser Distance Meter (LDM), One-Shot LDM, One-Shot Contrast, Manual

Digital Zoom

1 to 4x Continuous

Communication Modes

USB 2.0, Bluetooth, Wi-Fi, DisplayPort

Display

640 x 480 Pixels (VGA) Dragontrail® touchscreen

Battery Operation Time

>2.5 Hours, Typical Use

Dimensions

11 x 4.6 x 4.4" (279.4 x 116.84 x 111.76 mm)

Weight

2.2 lbs. (0.99 kg)

Country Of Origin

Estonia

  • Designed to cover near and distant targets, this 320 x 240-pixel camera features a 24° lens, a 4 to 1202°F (-20 to 650°C) temperature range, laser-assisted autofocus, and three area measurement boxes
  • This camera comes with FLIR Ignite cloud connection for easy and secure image storage and sharing
  • Provides complete coverage of near and far targets through a range of interchangeable AutoCal™ lenses, with fields of view for everything from wide-angle roof inspections to electrical inspections, all performed from a safe distance
  • It comes equipped with an optional temperature range to 1832°F (1000°C), laser-assisted autofocus, and three area measurement boxes, along with a 320 x 240 thermal resolution to produce crisp, vibrant imagery that can be enhanced with MSX® technology for added detail and perspective
  • The onboard Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations
